Heavy-Duty Brake Drum 3800AX | 16.5" x 8.625" Outboard Mount for Class 8 Trucks & Trailers
Product Overview

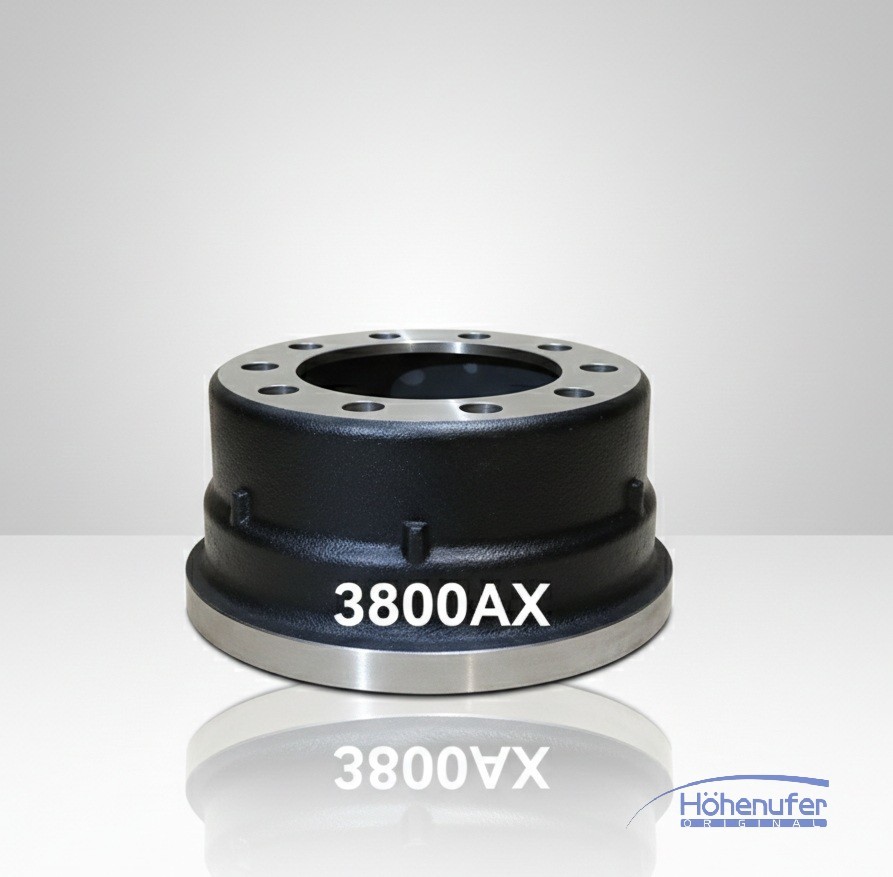

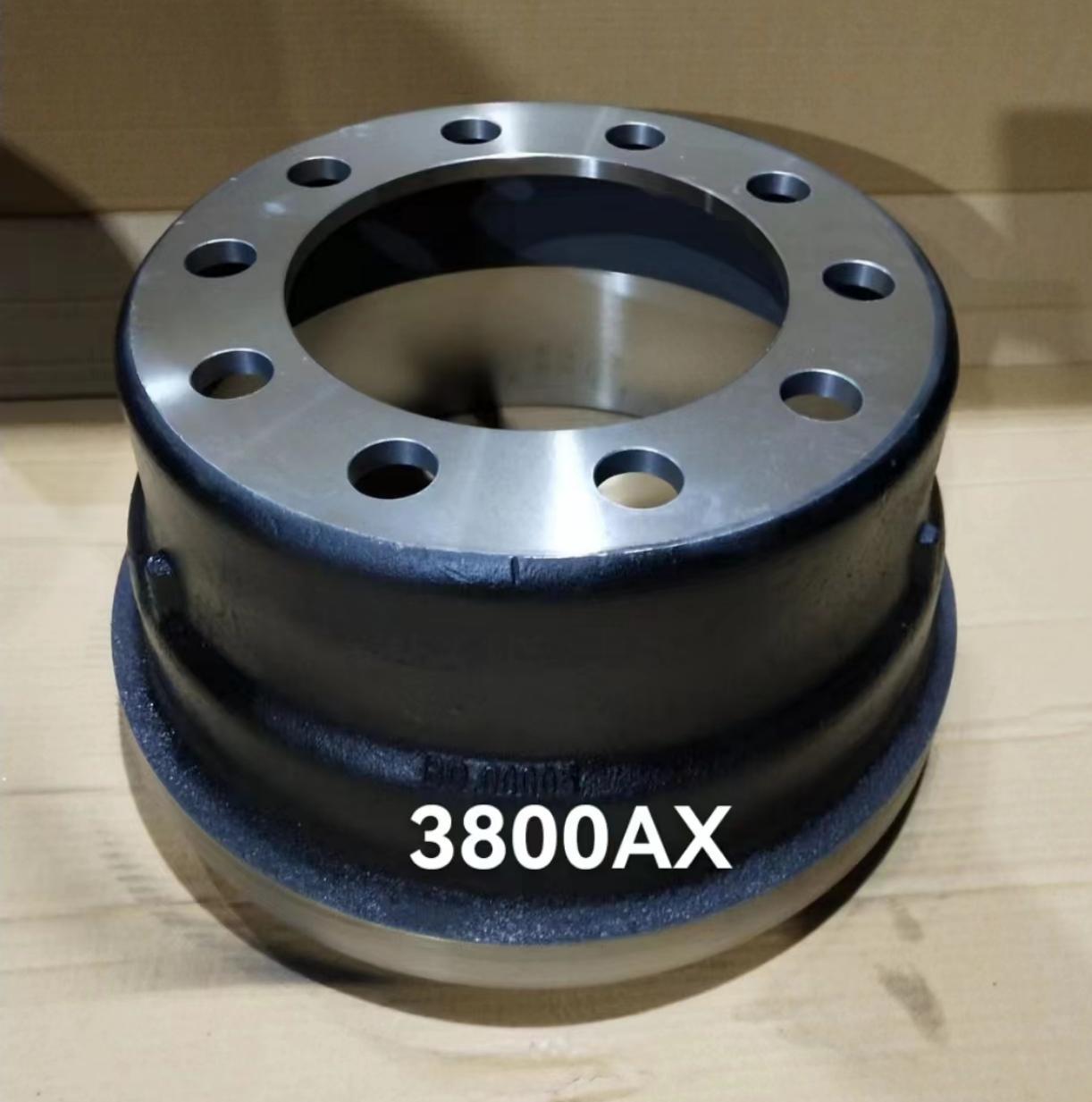

The 3800AX Brake Drum is a premium, full-cast braking component designed for heavy-duty commercial vehicles requiring maximum stopping power. Specifically engineered for 16.5" x 8.625" brake systems, the 3800AX is the industry standard for drive axles and heavy-capacity trailers where heat dissipation is critical.
Manufactured from high-carbon G3000 (GG25) grey iron, our 3800AX drum is built to withstand extreme thermal loads without cracking or warping. Its outboard mount design ensures ease of service, making it a favorite for fleet operators managing Freightliner, Kenworth, and Peterbilt trucks.
Technical Specifications
|
Attribute
|
Detailed Specification
|
|
Industry Part Number
|
3800AX / 3800A
|
|
Brake Size
|
16.50" x 8.625" (419mm x 219mm)
|
|
Mounting Type
|
Outboard
|
|
Bolt Hole Count
|
10 Holes
|
|
Bolt Circle Diameter (PCD)
|
11.25" (285.75mm)
|
|
Pilot Diameter (Center Hole)
|
8.78" (223mm)
|
|
Overall Depth
|
11.12" (282.5mm)
|
|
Brake Surface Width
|
9.06"
|
|
Material
|
Premium High-Carbon G3000 Iron
|
|
Weight
|
Approx. 125 lbs (56.7 kg)
|
Vehicle Compatibility
The 3800AX Brake Drum is a direct fit for a wide range of North American Class 8 heavy-duty applications:
·
Truck Brands: Freightliner (Cascadia), Kenworth (T680/T800), Peterbilt (579/389), International, and Western Star.
·
·
Axle Manufacturers: Compatible with Meritor, Dana (Spicer), and Hendrickson heavy-duty axle systems.
·
·
Axle Position: Primarily used on Drive Axles and Heavy-Duty Trailer Axles.
·
Cross-Reference & Interchange
This product is a direct interchangeable replacement for the following reference numbers:
·
Gunite: 3800AX, 3800A, 3800
·
·
Webb: 68730, 68730B, 68730F
·
·
Meritor: 53-123565-002, 123565
·
·
Dayton: 123565
·
·
Haldex: 3800AX
·
·
Fleetrite: FLT3800AX
·
Key Benefits
·
Maximum Heat Sink Capacity: The extra-wide friction surface and high-carbon metallurgy provide superior heat absorption, preventing "brake fade" during heavy hauling.
·
·
Precision Dynamic Balancing: Every 3800AX is balanced to strict tolerances (G16 grade) to eliminate wheel vibration and prevent premature wear on hub seals and tires.
·
·
Structural Stability: The reinforced mounting flange is designed to resist distortion under extreme torque, ensuring a consistent pedal feel and even lining wear.
·
·
Anti-Corrosion Finish: Treated with a specialized coating to resist road salt and environmental corrosion, maintaining structural integrity and ease of removal.
·
FAQ
Q: What is the difference between 3800AX and 3600AX?
A: The main difference is the width. The 3800AX is designed for an 8.625" brake shoe (Wide Brake), while the 3600AX is for a standard 7" shoe. They are not interchangeable.
Q: Can this drum be used on 23,000 lb axles?
A: Yes, the 3800AX is specifically engineered for high-capacity axles (23k and above) that require the wider braking surface for better thermal management.
Q: Is the 3800AX a "Full Cast" drum?
A: Yes, our 3800AX is a one-piece full cast iron drum, offering the best heat conductivity and structural rigidity for heavy-duty vocational and long-haul use.
