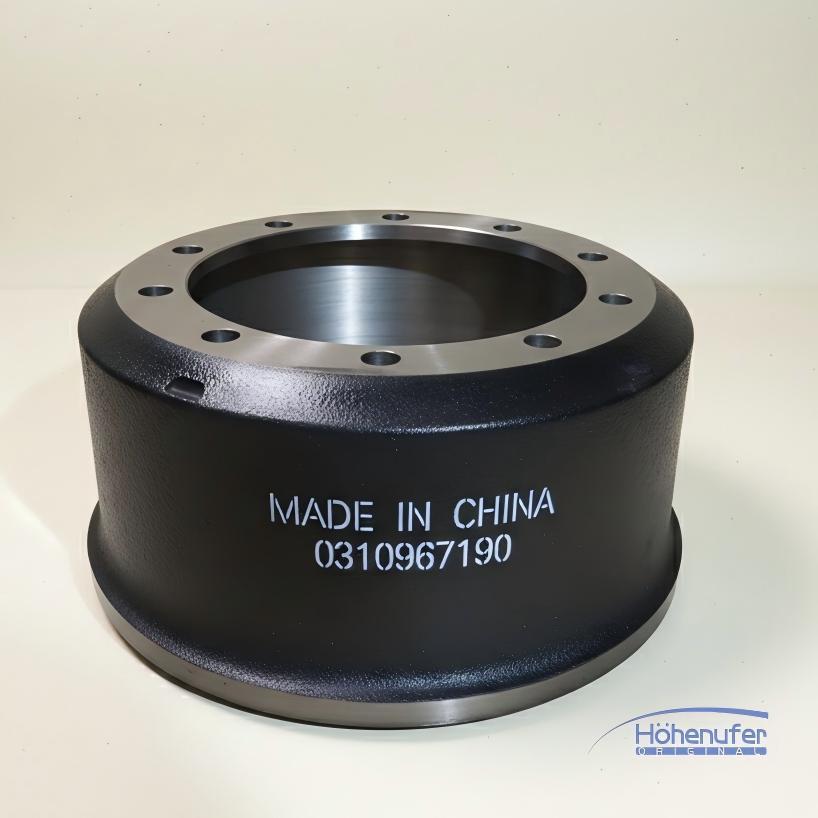

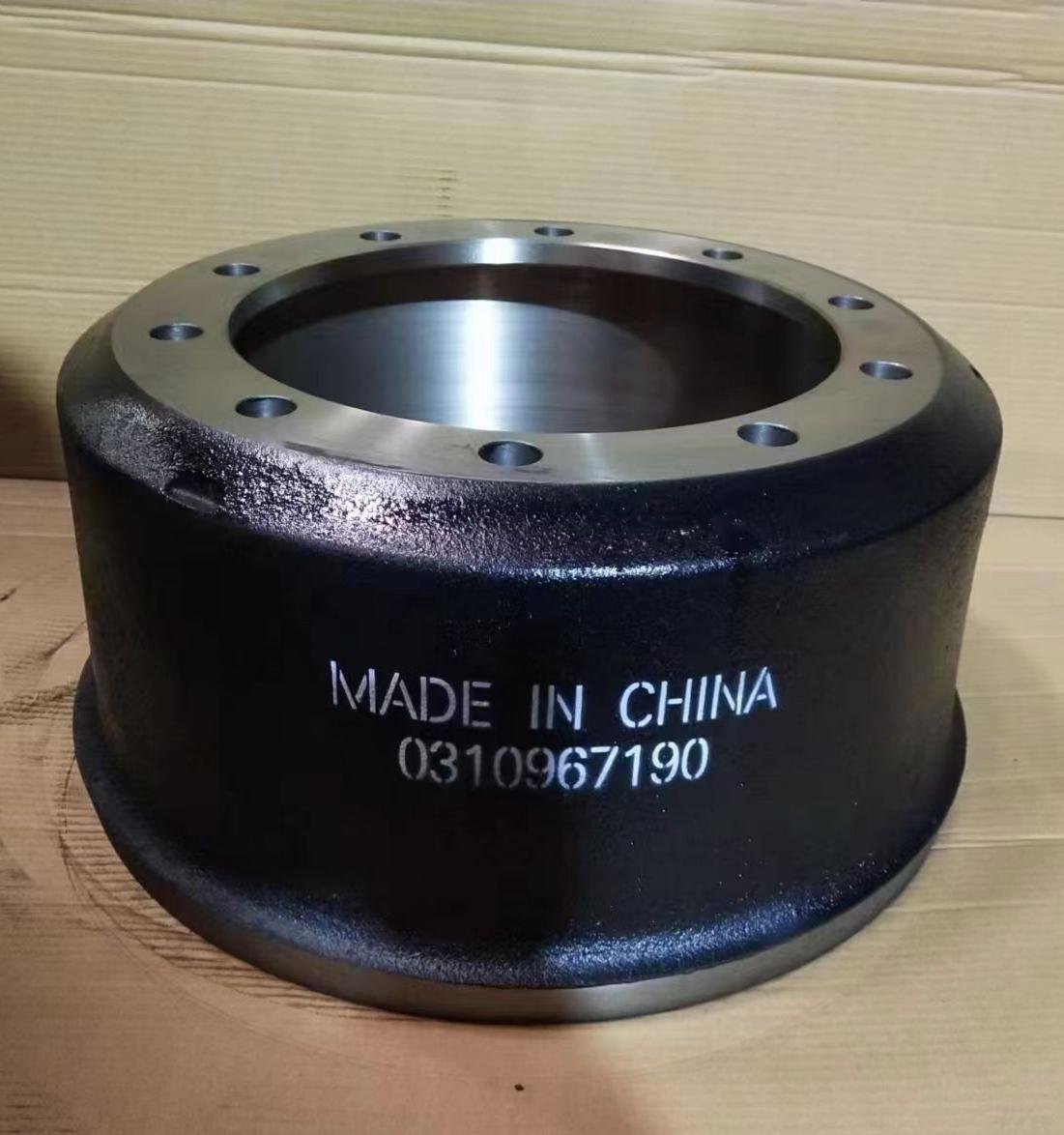

420x180mm 0310967190 Premium Brake Drum For BPW ECO Plus Axles

Premium Brake Drum 0310967190 for BPW ECO Plus Axles | 420x180mm Heavy-Duty Replacement

Product Overview

The 0310967190 Brake Drum is a high-performance, precision-engineered component specifically designed for BPW ECO Plus trailer axles. Utilizing advanced G3000/HT250 metallurgical standards, this brake drum is optimized for long-haul transportation and heavy-duty logistics.

Engineered to fit the 10-hole hub system, the 0310967190 model offers exceptional structural integrity. It is designed to withstand the rapid temperature fluctuations common in heavy-duty braking, ensuring that your fleet maintains maximum safety and efficiency. This product is the ideal choice for distributors and fleet managers looking for OEM-quality durability at an aftermarket value.

Vehicle Compatibility

This brake drum is a direct fit for various European trailer configurations using the BPW axle system:

Axle Brand: BPW

Axle Series: ECO Plus, ECO Plus 2 (H-Series / K-Series)

Application: Heavy-duty semi-trailers, container chassis, and refrigerated trailers.

Brake Type: SN 4218 (420mm diameter x 180mm width)

Technical Specifications

Accurate technical data is crucial for SEO and customer trust. Here are the dimensions for OE 0310967190:

Cross-Reference & Interchange

Ensure compatibility by checking against these industry-standard reference numbers:

BPW: 03.109.67.19.0 / 0310967190

Wabco: 12999718

Febi Bilstein: 30263

DT Spare Parts: 10.10515

Sampa: 070.160

PE Automotive: 086.330-00A

Key Benefits

Enhanced Heat Management: The high-carbon iron composition allows for rapid heat dissipation, significantly reducing the risk of thermal cracking.

OEM Dimensional Accuracy: CNC-machined to exacting tolerances for a perfect "plug-and-play" installation on BPW ECO Plus hubs.

Vibration-Free Performance: Every unit undergoes dynamic balancing to prevent "brake judder" and minimize wear on wheel bearings and tires.

Extended Service Intervals: Superior wear resistance ensures a lower Total Cost of Ownership (TCO) by extending the time between brake maintenance cycles.

Frequently Asked Questions (FAQ)

1. Is the 0310967190 Brake Drum compatible with BPW ECO Plus 2 axles?

Yes, the 0310967190 Brake Drum is specifically designed as a high-precision replacement for BPW ECO Plus 2 and ECO Plus axle systems. It features the standard 10-hole bolt pattern and is engineered to fit the unique hub configurations of these heavy-duty trailer axles. We recommend cross-referencing your current drum’s dimensions—specifically the 420 x 200 mm braking surface—to ensure an exact match.

2. What material grade is used for the 0310967190 to ensure safety?

Our 0310967190 brake drums are manufactured from premium-grade G3000 Grey Cast Iron. This material is selected for its high thermal stability and excellent wear resistance. By using high-carbon casting, the drum can withstand the intense heat generated during emergency braking or steep descents, significantly reducing the risk of thermal cracking and brake fade.

3. How does the 0310967190 improve fuel efficiency and tire life?

Efficiency is gained through precision dynamic balancing. Every 0310967190 unit is balanced at the factory to eliminate centrifugal imbalances. A balanced drum reduces "wheel hop" and vibration, which not only extends the life of your wheel bearings and tires but also reduces rolling resistance, contributing to better overall fuel economy for your fleet.

4. When should the 0310967190 Brake Drum be replaced?

Replacement is mandatory if you observe any of the following:

The Wear Limit: The internal diameter has reached or exceeded the "Max Dia" (Maximum Diameter) stamped on the drum’s exterior.

Deep Scoring: Significant grooves on the friction surface that cannot be machined out.

Structural Cracks: Any blueing (overheating) or cracks that extend through the thickness of the casting. Regularly checking the 0310967190 during scheduled maintenance is vital for the safety of heavy-load semi-trailers.
