BPW Axles Trailer Brake Drums OE 10206111 420x180mm Cast Iron Brake Drum

Heavy-Duty Trailer Brake Drum for BPW Axles - OE 10206111 | Premium 420x180mm Casting

Product Overview

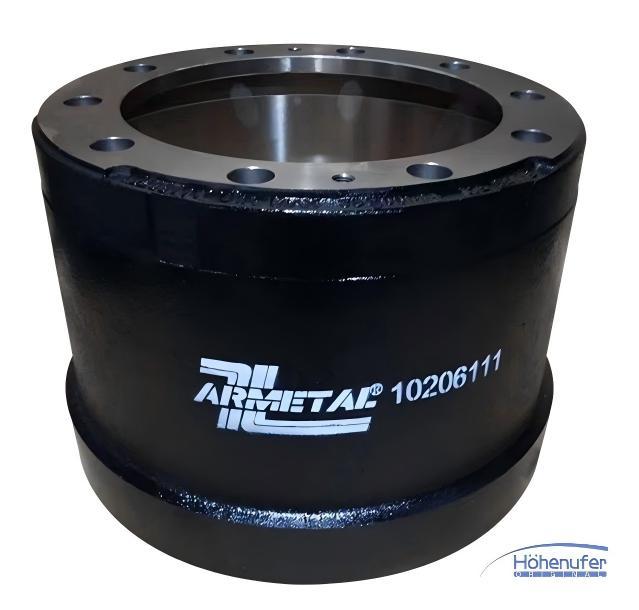

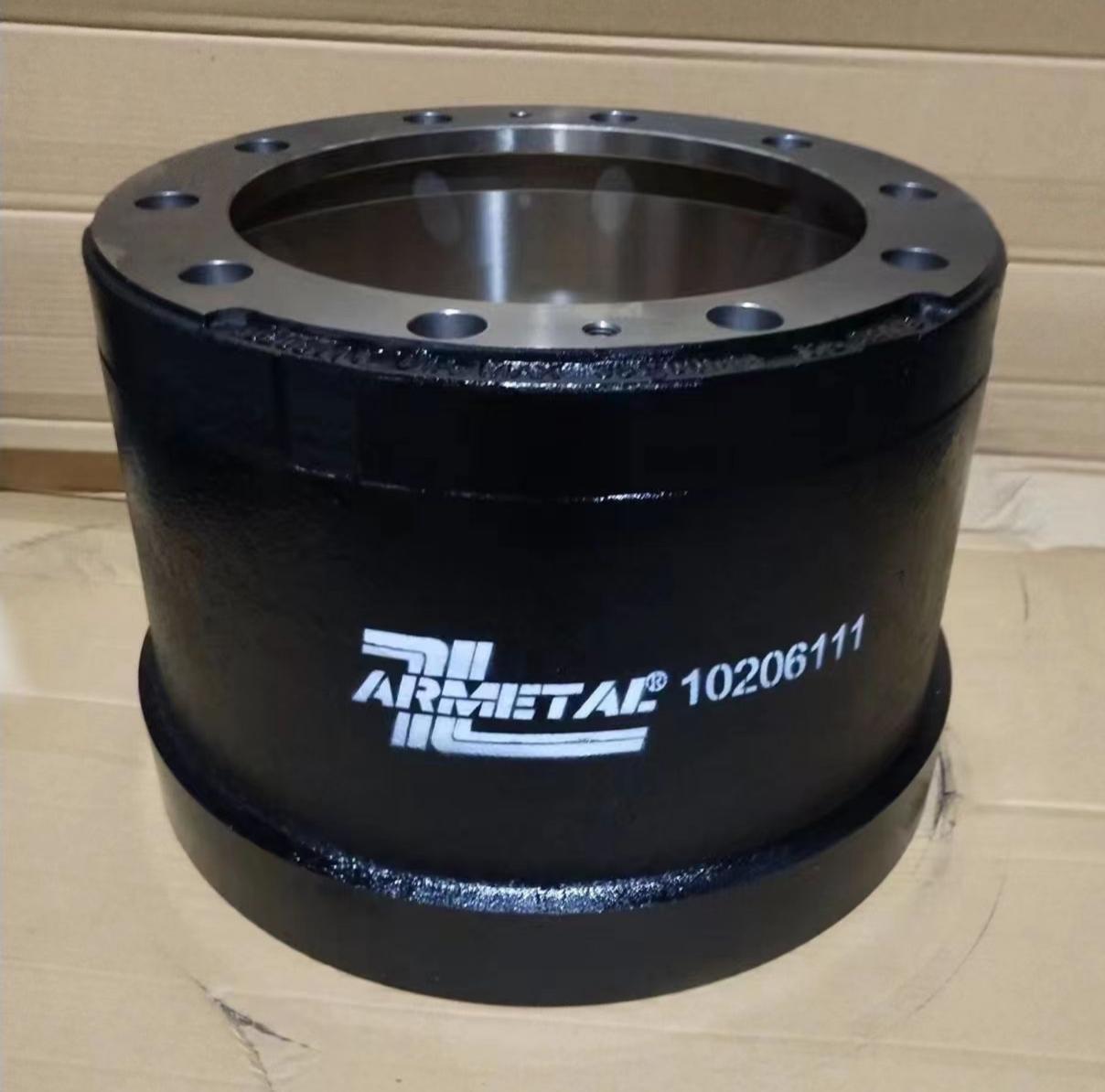

The OE 10206111 Brake Drum is a high-performance braking component specifically engineered for BPW axles and heavy-duty trailer applications. Built to withstand the rigorous demands of long-haul transportation, this brake drum is cast from premium G3000/GG25 grey iron, offering an optimal balance of hardness and heat conductivity.

Our manufacturing process focuses on high-precision machining to ensure perfect concentricity. This prevents uneven wear and minimizes brake judder, providing reliable stopping power even under maximum load capacities. Whether for fleet replacement or individual trailer maintenance, the 10206111 offers OEM-grade reliability at an exceptional value.

Vehicle Compatibility

This brake drum is a direct replacement for various European trailer axles and commercial vehicles, primarily:

BPW Axles: ECO, ECO Plus, and Standard Axle Series (420 x 180mm systems).

Trailer Brands: Often found on Schmitz Cargobull, Krone, and Kögel trailers utilizing BPW running gear.

Select Trucks: Compatible with certain heavy-duty configurations of DAF and Iveco.

Verification Note: Please check the hub pilot diameter and bolt circle to ensure a precise fit for your specific axle model.

Technical Specifications

Accuracy is vital for road safety. Here are the precise engineering dimensions for OE 10206111:

Cross-Reference & Interchange

This product can be used as a direct interchange for the following part numbers:

BPW: 03.106.67.29.0, 0310667290, 03.109.67.29.0, 10206111

Febi Bilstein: 03417 / 10512

DT Spare Parts: 10.11001

Textar: 94017300

PE Automotive: 046.011-00A

Meyle: 834 420 0001

Key Benefits

Advanced Heat Dissipation: Designed with optimal wall thickness to prevent "heat checking" and brake fade during prolonged braking on steep gradients.

Low Noise & Vibration: Precision dynamic balancing ensures smooth rotation, reducing the NVH (Noise, Vibration, Harshness) levels in the trailer's braking system.

Extended Lining Life: The finely machined friction surface ensures immediate bedding-in with brake shoes, reducing initial abrasive wear.

Rust-Resistant Coating: Each drum is treated with a protective oil-based or painted anti-corrosion layer to ensure long shelf life and durability in harsh road environments.

Strict Quality Certification: Produced in ISO/IATF 16949 certified facilities, ensuring every unit meets international safety standards for heavy commercial vehicles.

Frequently Asked Questions (FAQ)

1. Which axle systems is the 10206111 Brake Drum compatible with?

The 10206111 Brake Drum is a precision-engineered replacement specifically designed for BPW ECO and ECO Plus trailer axles. It is a standard fit for many European-manufactured trailers and semi-trailers used in long-haul logistics. To ensure a 100% correct fit, we recommend verifying the 10-hole mounting pattern and checking the internal diameter (420mm) and friction surface width (180mm) against the original BPW part number 03.109.67.29.0 or similar 10206111 cross-references.

2. How does the 10206111 Brake Drum perform under extreme heavy-duty loads?

Our 10206111 drums are manufactured from high-tensile G3000 Grey Cast Iron, which is essential for heavy-tonnage trailer applications. This material offers superior thermal conductivity, allowing the drum to absorb and dissipate the intense heat generated during downhill braking with full cargo. This specialized metallurgy prevents brake fade and resists structural "bell-mouthing," ensuring that your trailer maintains consistent stopping power even under extreme operating conditions.

3. Does the 10206111 Brake Drum come factory dynamically balanced?

Yes, every 10206111 unit undergoes rigorous precision dynamic balancing before leaving the factory. In trailer axles, an unbalanced drum is a leading cause of chassis vibration, which can lead to premature failure of wheel bearings, ABS sensors, and tires. Our pre-balanced drums ensure a smooth, stable rotation at highway speeds, significantly reducing your fleet's total cost of ownership (TCO) by protecting the entire wheel-end assembly.

4. What is the wear limit and maintenance protocol for the 10206111?

Safety and compliance are critical for trailer maintenance. You should inspect the 10206111 during every brake lining replacement and swap it out if:

Max Dia Reached: The internal diameter meets or exceeds the Maximum Diameter (Max Dia) limit cast onto the outer rim (usually 424mm for this specific model).

Heat Checking: You notice deep radial cracks on the friction surface caused by localized overheating.

Scoring: Significant grooves are present that prevent the brake shoes from making full, even contact with the drum surface.
