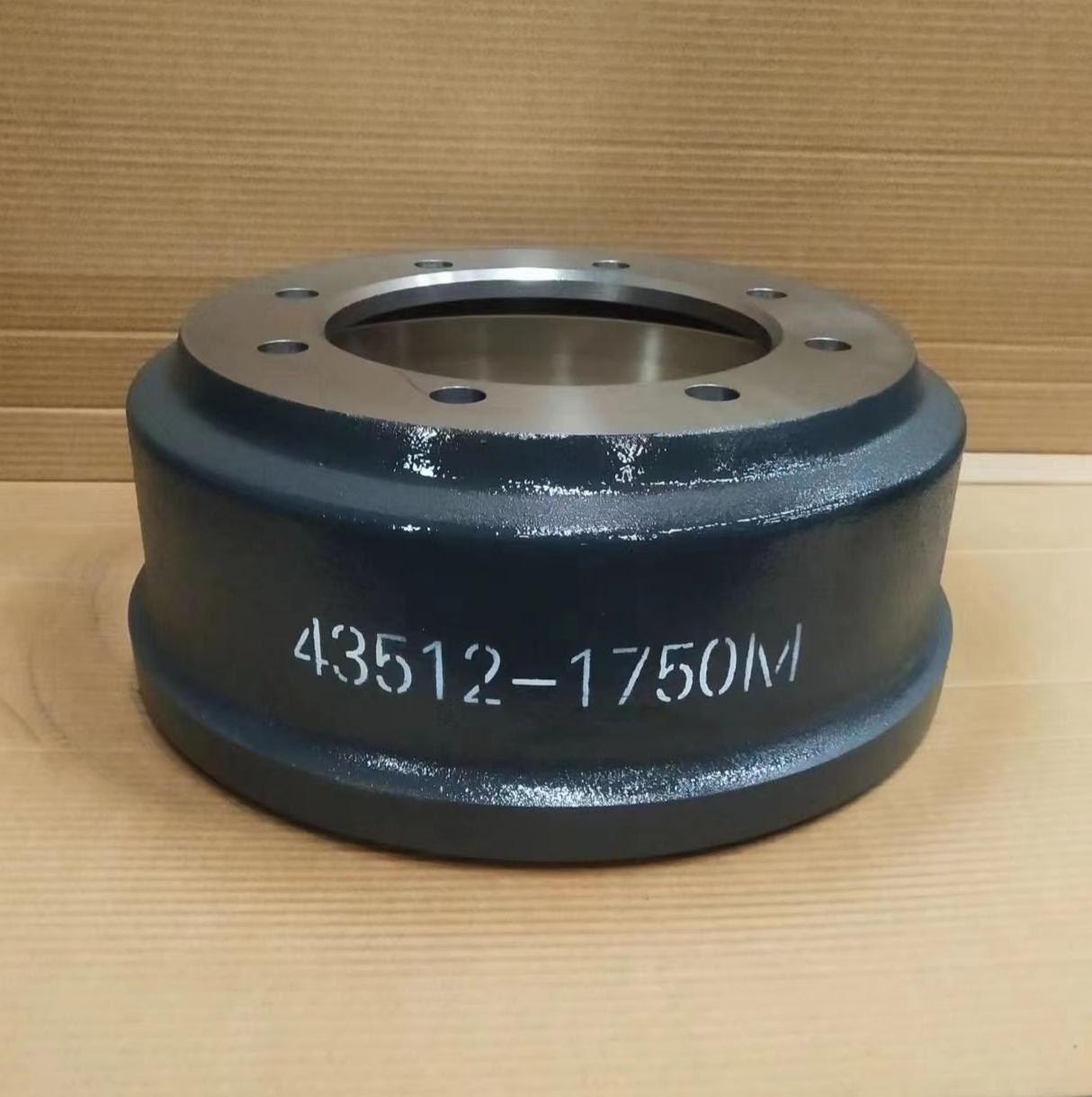

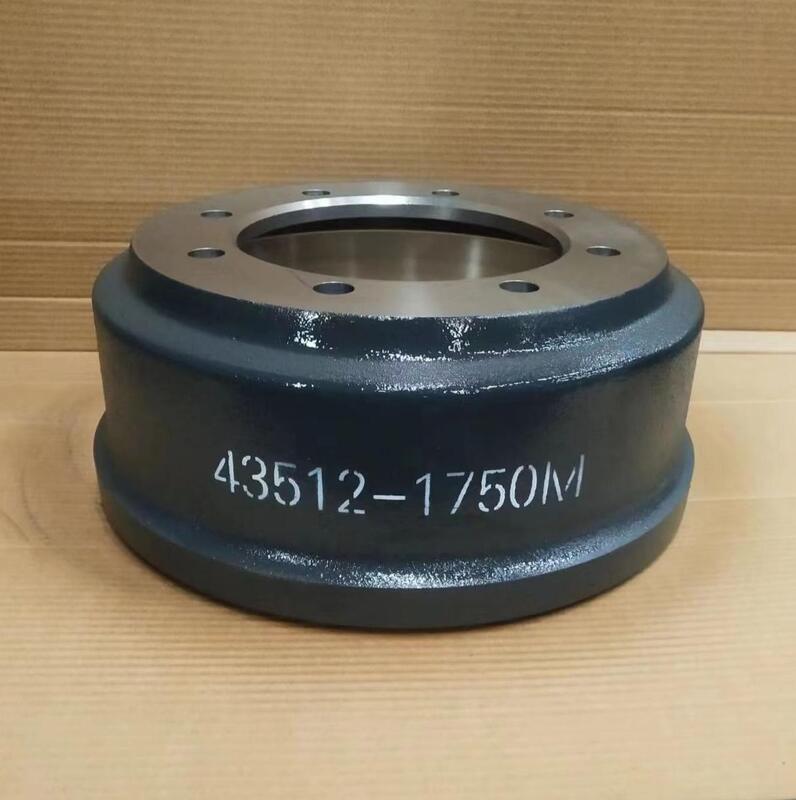

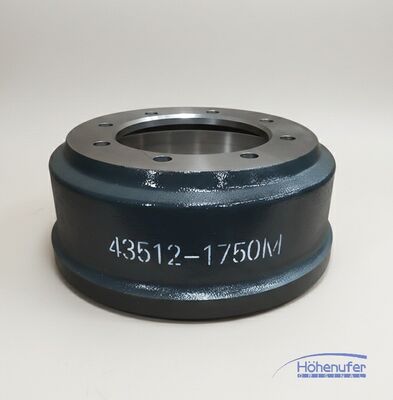

OE 43512-1750M Isuzu Brake Drum Replacement G3000 Cast Iron Brake Drum

Premium Heavy-Duty Brake Drum for Hino & Isuzu Trucks - OE 43512-1750M | High-Precision G3000 Casting

Product Overview

The OE 43512-1750M Brake Drum is a professional-grade safety component engineered for the demanding braking systems of Hino and Isuzu heavy-duty commercial vehicles. Specifically designed for the 700 Series (Profia) and Giga series, this brake drum provides consistent friction performance and exceptional thermal management under maximum load capacities.

Manufactured from high-carbon G3000/HT250 grey iron, our 43512-1750M model features optimized cooling fins and wall thickness to prevent "heat checking" and surface cracks. Each drum is precision-machined and 100% dynamic balanced to eliminate vibrations, ensuring a smoother ride and extending the life of your brake linings and wheel bearings.

Vehicle Compatibility

This brake drum is a direct OEM-equivalent replacement for high-performance Japanese-engineered trucks:

Hino 700 Series (Profia): Models SH, SS, FR, and FS (Various axle configurations).

Isuzu Giga / C-Series: Selected heavy-duty 6x4 and 8x4 tractor/tipper models.

Hino 500 Series: Certain heavy-duty export variants.

Specialty Chassis: Fire trucks and concrete mixers using Hino-standard 10-hole hub patterns.

> Verification Advice: Please verify the centering diameter (251mm) and bolt circle (300mm) against your vehicle's technical manual before ordering.

Technical Specifications

Cross-Reference & Interchange

The 43512-1750M is interchangeable with the following industry part numbers:

Hino: 43512-1750, 435121750, 43512-1750M, 43512-E0130

Isuzu: 1-42311-536-0, 1423115360

Aftermarket Reference: HN-BD1750, J-43512-1750

Industry Standards: 43512-2591, 43512-1023

Key Benefits

Superior Thermal Stability: The high-carbon alloy composition allows for rapid heat absorption and dissipation, preventing brake fade during intense operation.

OEM Geometric Accuracy: Machined on advanced CNC equipment to ensure a perfect "bolt-on" installation, reducing workshop labor time.

Perfect Dynamic Balance: Every drum is pre-balanced to eliminate judder and vibration, protecting wheel seals and hubs from premature failure.

Low Maintenance Cost: Durable wear-resistant material reduces the frequency of replacements, lowering the total cost of ownership (TCO) for fleet owners.

Anti-Corrosion Treatment: Finished with a protective layer to prevent rust during shipping and storage.

FAQ (Frequently Asked Questions)

Q1: What are the symptoms of a worn 43512-1750M brake drum?

A: Common symptoms include heavy vibration during braking, loud squealing noises, and visible cracks or blue "heat spots" on the friction surface. If the drum's internal diameter exceeds the maximum limit, it must be replaced for safety.

Q2: Does this drum fit both the front and rear axles of Hino 700?

A: It depends on the specific chassis configuration. While the 43512-1750M is common for rear axles, some heavy-duty Hino trucks use it for all wheels. Please check the Brake Surface Width (215mm) to confirm.

Q3: Is G3000 material better than standard cast iron for Hino trucks?

A: Yes. G3000 (GG25) is the industry-standard for heavy trucks because it offers high tensile strength and superior heat conductivity, which is essential for heavy-duty hauling in high-temperature environments.
